RV/Trailer Rental Selection

---

Wheelbase                                          208"

GVVR (lbs)                                      20,700

Front GAWR (lbs)                            7,500

Rear GAWR (lbs)                           13,500

Base Weight (lbs)                         17,220

GCWR (lbs)                                    25,700

Hitch Rating Weight (lbs)*           5,000

Tongue Weight (lbs)*                       500

Fuel Capactiy (gal)                              75

Overall Length                                 32'

Overall Height (w/ A/C)                 12'  2"

Overall Width (max)                       102"

Interior Height (max)                      79"

Interior Width (max)                       96"

Fresh Water Hold. tank (gal)         100

Grey Water Hold. Tank (gal)           58

Black Water Hold. tank (gal)          42

Appliance LPG Tank(gal)(WC)        25

Water Heater Tank (gal)                 10

3-Point Seat Belts at Driver & Front Passenger Seats, 54" x 76" Cab over Bed with Patented Slider. Bunk Operation, Privacy Curtain, Roof Vent & Sliding Side Windows, Bath Door with Residential Passage Lock and Towel Bars, Day/Night Pleated Shades, Deluxe Roller Bearing, Full Extension Drawer Guides, Dinette, Convertible for Sleeping, Drawer Boxes with Real Wood Construction, In Dash AM/FM Radio with CD Player, Innerspring Mattress

Chevy express/Workhorse Chassis

6.0L Vortec

V8 with 300 HP

Dual Airbags

4W Anti-Lock Brakes

Automatic 4-Speed Transmission with Overdrive

Chevy E450 Chassis

6.8L Triton V10 with 305HP

Dual Airbags

4W Anti-Lock Brakes

Automatic 5-speed Transmission

High mounted Large Tail lights

High-Gloss Tuff-Coat Smooth Fiberglass Exterior

 3-Point Seat Belts at Driver & Front Passenger Seats, 54" x 76" Cab over Bed with Patented Slider. Bunk Operation, Privacy Curtain, Roof Vent & Sliding Side Windows, Bath Door with Residential Passage Lock and Towel Bars, Day/Night Pleated Shades, Deluxe Roller Bearing, Full Extension Drawer Guides, Dinette, Convertible for Sleeping, Drawer Boxes with Real Wood Construction, In Dash AM/FM Radio with CD Player, Innerspring Mattress,

Ford Chassis

4W Anti-Lock Brakes

Automatic 4-Speed Transmission with Overdrive

Ford E450 Chassis

6.8L Triton V10 with 305HP

Dual Airbags

4W Anti-Lock Brakes

Automatic 5-speed Transmission

High mounted Large Tail lights

High-Gloss Tuff-Coat Smooth Fiberglass Exterior

Overall Length                                  31'

Overall Height (w/ A/C)                 11'4"

Overall Width (max)                       102"

Interior Height (max)                      79"

Interior Width (max)                        96"

Fresh Water Hold. tank (gal)           35

Grey Water Hold. Tank (gal)            35

Black Water Hold. tank (gal)           35

Appliance LPG Tank(gal)(WC)         14

Water Heater Tank (gal)                    6

Sleeps: 6

Dining/Living area slidout

 8 Cubic Foot Refrigerator

12V DC Interior Lighting, Air Conditioner Pre-Wiring,  2-Burner Cook Top, 4-Function Monitor Panel Cable,

16' Awning

Water Heater            6 Gallon

Propane Tanks          2 - 6 Gallon

Water Tank Fresh     40 Gallon

Gray holding tank    40 Gallon

Black holding tank   40 gallon

GVW 8000 lb loaded

Aluminum frame

Aluminum walls

Single Stainless Steel Sink, 2.7 Cubic Foot Refrigerator, Formica Counter Top, Full Linoleum Flooring, Smoke Tinted Windows, Decorative Wall Paneling, Window Shades, Solid Front Wall Window, Stereo System Pre-Wiring, Single Convertible Dinette/Bed, TV Antenna/Cable Pre-Wiring, 12V DC Interior Lighting, Air Conditioner Pre-Wiring,  2-Burner Cook Top, 4-Function Monitor Panel Cable, Assisted Ramp Door, Emergency Escape Window

On-Demand Water Pump, two Wheel Electric Brakes, 6 Gallon DSI Water Heater, Lockable Service Doors, Wet Bath, Powder Coated Wheels, Stone Guard on Sides & Front, Tie Down Anchors, 60 Amp Converter with 12V Battery Charger, Deep Cycle Battery, Furnace, R-7 Insulated Walls & Ceiling

Fresh Water Capacity:         40 Gal.

Grey Water Capacity:           22 Gal.

Black Water Capacity:          22 Gal.

Propane (L.P.G.) Tank size:   5 Gal.

 14' Travel trailer, sleeps four (1 full bed and 2 bunk beds), fully equipped with refrigerator, stove and microwave. Bathroom with sink and shower, TV and rooftop air-conditioning unit.

On-Demand Water Pump, two Wheel Electric Brakes, 6 Gallon DSI Water Heater, Lockable Service Doors, 30 Amp Converter with 12V Battery Charger, Deep Cycle Battery, Furnace, R-7 Insulated Walls & Ceiling, 2-Burner Cook Top, Emergency Escape Window, and leveling jacks, GVWR 3850 lbs, overall length 17.5'

Fresh Water Capacity:         18 Gal.

Grey Water Capacity:           15 Gal.

Black Water Capacity:          10 Gal.

Propane (L.P.G.) Tank size:   5 Gal.

 15' Travel trailer, sleeps four (1 full bed and 2 bunk beds), fully equipped with refrigerator, stove and microwave. Bathroom with sink and shower, TV, stereo system and rooftop air-conditioning unit.

On-Demand Water Pump, two Wheel Electric Brakes, 6 Gallon DSI Water Heater, Lockable Service Doors, 30 Amp Converter with 12V Battery Charger, Deep Cycle Battery, Furnace, R-7 Insulated Walls & Ceiling, 2-Burner Cook Top, Emergency Escape Window, and leveling jacks, electric awning, GVWR 3250 lbs, overall length 18'

Fresh Water Capacity:         16 Gal.

Grey Water Capacity:           20 Gal.

Black Water Capacity:          20 Gal.

Propane (L.P.G.) Tank size:   6 Gal.

Sleeps:  8

Length:  15' 8"

Ext Width:  7'5"

Ext Height:  8'2"

Int. Height:  6'6"

Ext. Color:  White

Hitch Weight: 160 lbs

Gross Weight: 2500 lbs

Dry Weight: 1750 lbs

Cargo Weight: 750 lbs

Fresh Water Capacity: 10 gals

Tire Size :  ST175/80D13

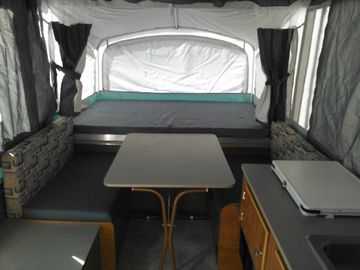

Queen tent end bed, portable dinette, storage, Galley with 2 burner stove and sink, Convertible bench bed, Double tent end bed, Opt. RVQ Grille or Outside Stove, and more. Decor Package, Canopy 11'.
